Appliances are the one part of a kitchen remodel that arrives in a box with its own rules. Each one has an installation sheet, a required opening, a clearance, an electrical or gas connection and a ventilation need, and the cabinets around it have to be built to those numbers. The questions below come up on nearly every kitchen job in Scottsdale, AZ, and the answers decide where things go before a single cabinet is ordered.

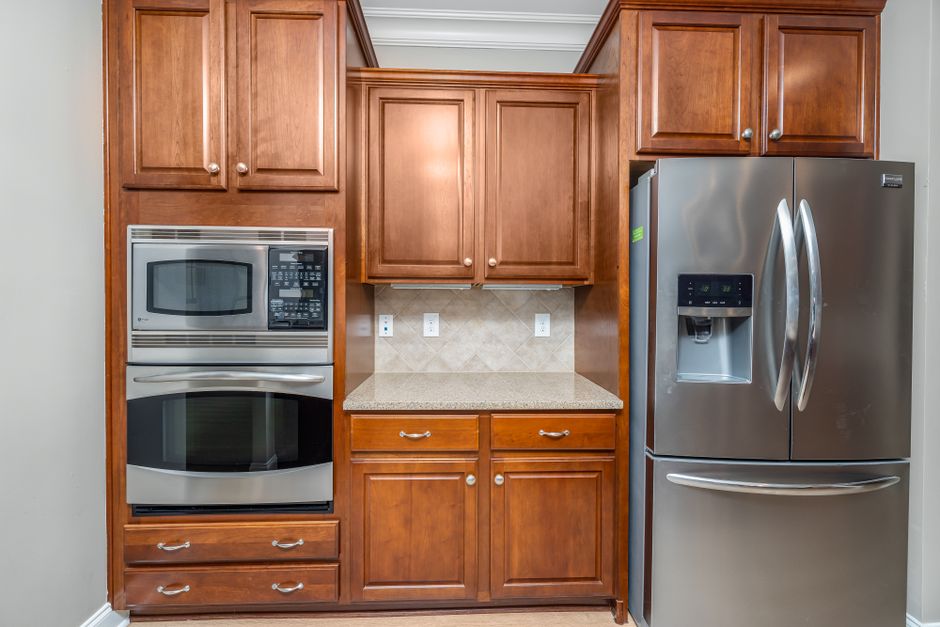

Should the oven be a range or a wall oven with a separate cooktop?

A freestanding or slide-in range puts the oven and the burners in one unit, takes up one section of the wall and needs one set of connections. A wall oven and a separate cooktop split the two apart, which frees the cooktop to sit on an island and lets the oven rise to a comfortable height. The split uses more floor and cabinet space, because the wall oven needs a tall cabinet and the cooktop needs a base cabinet with its own depth and clearance below.

The choice is not just about looks. A wall oven needs a dedicated circuit and a cabinet that supports its weight, with a ventilation gap that the manufacturer specifies. A cooktop needs its own circuit or gas line, a hood above it and a clear area on either side for landing hot pans. A range is simpler, and in a small kitchen it is often the better answer. In a large open kitchen, which is common across Scottsdale, the split layout earns its space.

Where should the microwave go?

Over the range is the traditional spot, and it saves counter space, but it puts hot steam and a heavy door at head height above the burners. A drawer-style microwave built into an island or a base cabinet sits at a comfortable height for everyone, and it clears the wall for a proper ducted hood. A shelf in a pantry or a tall cabinet keeps it off the counter entirely.

Whatever the location, the microwave needs its own circuit under the adopted code, and the cabinet around it needs ventilation as specified in the guide. Built-in trim kits close the gap between the unit and the cabinet opening, and they are chosen by model number, so the model has to be known before the cabinet maker draws the opening.

How much clearance does a cooktop need?

Clearance has two parts: what is above and what is beside. Above the cooktop, the manufacturer of the hood and the cooktop both state a minimum and often a maximum height. Too close is a fire concern, and too far is a capture problem, because the hood stops pulling the plume. Beside the cooktop, combustible cabinets need a minimum gap or a heat shield, and landing space for a pot is a practical need that has nothing to do with code.

A table of the common clearances worth confirming against the installation sheet:

Item	What to confirm
Cooktop to hood	Minimum and maximum height from the cooking surface
Cooktop to side wall or cabinet	Gap to combustible material
Wall oven cabinet	Opening size, ventilation gap and weight support
Microwave drawer	Cut-out width, depth and trim kit
Warming drawer	Circuit, cut-out and clearance beneath
Beverage refrigerator	Front or rear venting, door swing

Those are the numbers an inspector and an installer will ask about, and they live on the sheet that comes in the box or on the manufacturer's website.

Do built-in appliances need ventilation behind them?

Yes. An oven is insulated, but it still sheds heat through its top and sides, and the cabinet around it is built with a gap for that heat to escape. Wall oven cabinets typically have a vent opening at the top or the back. A refrigerator has grilles at the base or the top, and a beverage cooler has either front venting for built-in use or rear venting for freestanding use. Putting a freestanding cooler into a tight cabinet is a common mistake, and it works until the first hot afternoon in the Phoenix metropolitan area, when the compressor runs without stopping.

Heat is more than a comfort question in the Sonoran Desert. Cabinets near an oven see higher temperatures than they would elsewhere, and a hot kitchen makes every appliance work harder. Leaving the specified gaps and keeping them clear protects the whole room.

What about gas versus electric?

Gas gives instant visible heat and works during a power cut. Electric radiant and induction cooktops are smoother to clean, and induction is far more responsive than radiant, with very little waste heat released into the room. Ovens are a separate choice: many cooks pair a gas cooktop with an electric oven, a combination that needs both a gas line and a heavy circuit. Houses around Maricopa County built before the 1980s often have gas to the kitchen, and the gas stays in the plan until someone decides to cap it.

The deciding facts are what the house already has, what the panel can carry and what the cook prefers. A gas line that is already there is worth keeping, and a panel with no spare capacity is a strong reason to think twice about adding another large electric load.

When should appliances be ordered?

Before the cabinets. The cabinet maker needs exact dimensions, and those come from the appliance specification, not from a showroom display. Lead times vary by brand and season, and some models are back ordered for weeks. The safe approach is to choose the appliances early, order them, and have them delivered to a dry indoor space before the install date. Unboxing them on the day they are needed is how a kitchen ends up with a missing refrigerator for a month.

When a model is discontinued after the cabinets are built, the replacement may differ by a fraction of an inch, and a fraction of an inch is enough to leave a gap or a door that will not close. Keep the original specification sheets in a folder with the plans.

Delivery access is part of the same plan. A wide refrigerator or a tall wall oven has to get through the front door, down the hall and past the island, and a measuring tape run along that path before ordering saves a hard afternoon. Houses near Camelback Mountain with narrow side gates or stepped entries are the usual trouble spots, and the delivery crew will not take a unit apart to fit it through.

Who connects the appliances?

The licensed trades connect them. An electrician makes the hardwired and plug connections and checks them against the nameplate, a plumber connects the water line and drain for the dishwasher and any water line for an ice maker, and a gas fitter handles any gas appliance. The permit and final inspection cover those connections, and the inspector expects to see the appliances set and running. A dishwasher with a loose drain, or an oven on a circuit that is a size too small, fails there.

Final note

Appliance choices belong at the start of a kitchen plan, because every cabinet and every connection follows from them. Pick them, read the sheets, and then draw the room around them.

Most of the electrical work in a kitchen is invisible once the room is finished, which is exactly why it gets planned badly. People pick the tile and the cabinet colour for weeks, then discover on the last day that the only outlet near the coffee station is behind the toaster, or that the island has no power at all. In Scottsdale, AZ, where kitchens tend to be large, open to the living room and lit by a lot of glass, the layout of switches, outlets and fixtures does more to decide how the room feels than most finishes do.

Where do outlets go along a kitchen counter?

The adopted electrical code sets a simple rule for countertop receptacles: no point along the wall side of a counter should be far from an outlet, and any counter section wider than a small gap needs its own. In practice that means an outlet roughly every few feet along the backsplash, and it means a plan drawn on the actual cabinet elevation, not on the floor plan. A floor plan shows where the walls are. An elevation shows where the upper cabinets, the range hood, the window and the backsplash tile will be, and the outlets have to land between them.

Outlets sit in the backsplash zone, usually a few inches above the countertop surface. When the backsplash is full height tile or slab stone, the boxes are set before the tile goes up so the tile setter can cut around them cleanly. A box that sits proud of the wall by an eighth of an inch looks sloppy under a sheet of porcelain. The electrician and the tile setter need to talk about it, because box extenders are a poor fix and waste time on both sides.

How does an island get power?

An island needs at least one receptacle on the island itself under the adopted code, and many jobs add more. There are three common ways to deliver it. A receptacle on the side of the island cabinet is the simplest to build and stays out of the way. A pop-up unit that rises out of the countertop is tidy when closed, but it needs a deep, clear cavity below the stone and it cannot sit over a drawer stack. An outlet strip mounted on the underside of a countertop overhang is a third approach, and it works when there are stools along that side.

All of these need a cable run to the island, and in a slab-on-grade house that is the part that surprises people. Many Scottsdale homes sit on a concrete slab, so a conduit has to be cut into the floor or the cable has to come down from the attic through a soffit or a cabinet. Cutting the slab means saw dust, a patch and a curing time, and it has to happen before the new flooring goes in. Knowing that early is the whole point of drawing the plan first.

What kinds of lighting does a kitchen need?

A kitchen usually needs three kinds of light at once, and they should not share one switch.

• Ambient light fills the room: recessed cans, a flush mount or a cove fixture. It gets a dimmer.
• Task light falls on the work surface: under-cabinet strips or puck lights, placed near the front edge of the upper cabinet so the light lands on the counter and not on the backsplash alone.
• Accent light is the glow inside glass doors, above the cabinets or under the toe kick. It is optional, and it is easy to rough in while the walls are open.

Recessed cans are laid out on a grid that respects the cabinets and the island, not just the ceiling. A can that lands directly over a hanging pendant or an upper cabinet door casts a shadow right where the work happens. Spacing them a fixed distance from the cabinet face, so the light falls on the counter and not on the front of the doors, is a habit worth keeping. Houses with a sloped or vaulted ceiling need cans rated for the slope, and houses with an insulated attic above need cans rated for contact with insulation.

Why does the light feel different in Scottsdale?

Desert light is hard and white during the day, and the kitchens here often have big windows facing the Sonoran Desert or the McDowell Mountains. At noon the room is bright enough that the fixtures hardly matter. After sunset the same room can feel flat and cold if every light is the same colour. Choosing warm light for ambient fixtures, and a slightly cooler tone for task strips, gives the room two moods without a single extra fixture. The colour temperature is printed on the package of every bulb and strip, and it is worth reading, because mixing tones on the same wall looks like a mistake.

Glare is the other desert problem. A kitchen with a long south-facing window and a glossy stone counter will throw reflected light onto the ceiling at some hours. Shades, a slightly honed counter surface and dimmable ambient lights keep the room comfortable. All of it is easier to plan than to retrofit.

What goes on which switch?

Switches are placed where a person's hand goes while the other hand holds a bag of groceries. That means at the entry from the garage, at the entry from the dining room and near the sink. A three-way arrangement lets one light be controlled from two entrances. A fan and a hood light need their own switches, since the hood fan is loud and nobody wants it on every time the counter lights are on.

A list of switches worth planning:

• Ambient lights on a dimmer at the main entry
• Under-cabinet lights on a separate dimmer near the range or sink
• Pendants over the island on their own control
• Range hood fan and light at the hood, with a wall switch as a backup
• A switched outlet for a lamp or a plug-in accent light

Smart switches can replace any of these, but they need a neutral wire in the box, and many older houses around the Phoenix metropolitan area wired in the 1960s and 1970s never ran one. That is another fact that is easy to check before the drywall closes and a headache to discover afterward.

What does the inspector check?

Rough-in is inspected before the wall is closed. The inspector looks at box fill, cable support, the height of the boxes, the protection where a cable passes through a stud and the circuits feeding the countertop. After the finish work, a second visit checks the receptacles, the ground fault and arc fault protection and the fixtures. Maricopa County jurisdictions and the City of Scottsdale each have their own forms and scheduling, so the electrician pulls the permit and books the visits. A kitchen that passes the first time is usually one where the plan was drawn before a single wire was run.

A short walk through the finished room tests the plan: stand at each work area and ask what is within reach. If the answer is a clear counter, a light on the work, a place to plug in a mixer and a switch near the door, the electrical plan did its job. If the answer is a cord stretched across the room, it did not.

Closing note

Kitchen electrical is planned on paper, on the cabinet elevations, and built into the open walls before the finishes arrive. Done in that order it disappears, which is how it should look.
